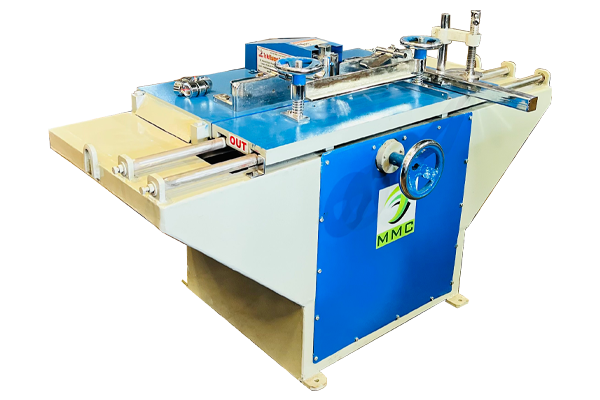

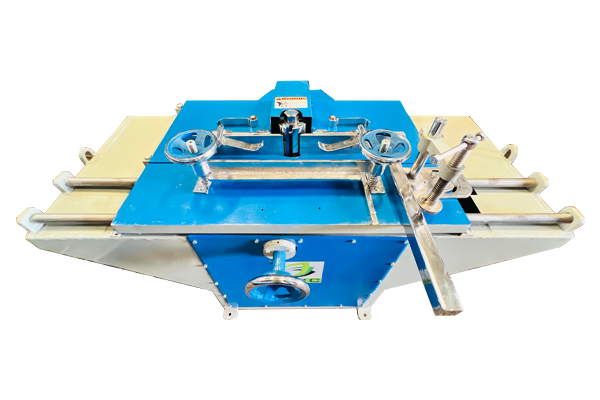

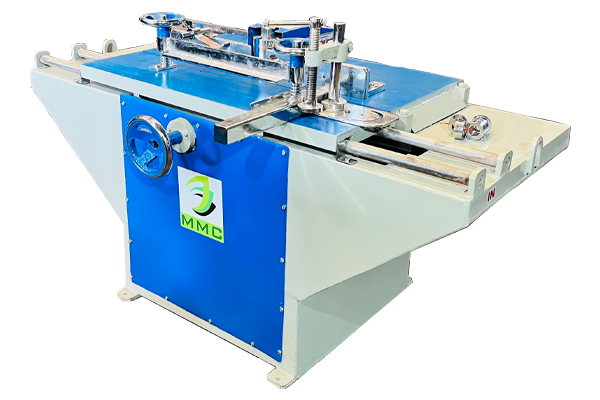

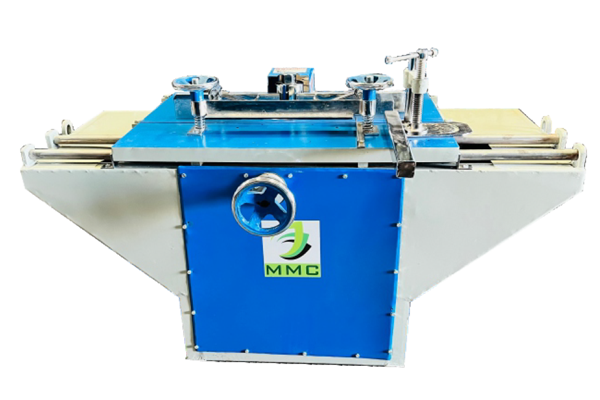

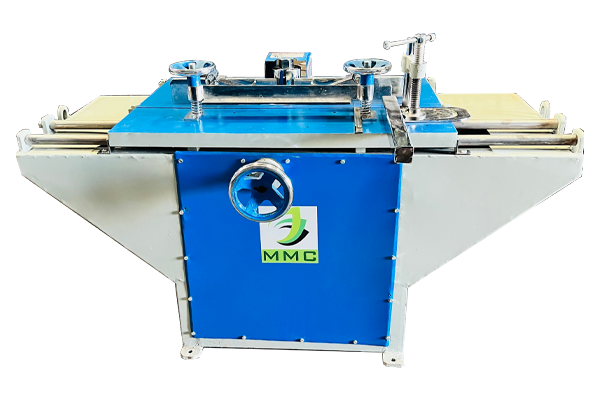

Spindle Moulder Machine
The Spindle Moulder Machine is a versatile and precision-engineered woodworking machine designed for edge profiling, moulding, grooving, rebating, planning, and tenoning operations. Equipped with a vertically oriented spindle, it drives cutter heads to shape and profile wood with high accuracy and superior finish.
Ideal for furniture manufacturing units, plywood plants, and woodworking workshops, this machine delivers smooth performance, high productivity, and consistent output across a wide range of wood processing applications.
Key Features:
- Precision vertical spindle for accurate profiling & moulding
- Suitable for edge moulding, planning, grooving & tenoning
- Heavy-duty cast iron & steel construction for vibration-free operation
- Sliding work table for smooth and controlled material feeding
- Adjustable spindle height for flexible operations
- Multiple spindle speed options for different cutting requirements
- Designed for continuous industrial use
Advantages
- Produces high-quality profiles with smooth finish
- Multi-purpose machine reduces need for multiple setups
- High accuracy and repeatability
- Durable design ensures long service life
- Easy operation with minimal maintenance
- Ideal for small workshops as well as large production units
Applications
- Furniture profiling & moulding
- Door & window frame shaping
- Edge moulding on plywood & solid wood
- Tenoning & grooving operations
- Decorative wood components
Model: MMC-SM-150
| Specification | Details |
|---|---|
| Work Table Size | 1120 x 480 mm (44" x 19") |
| Sliding Table Size | 1120 x 280 mm (44" x 11") |
| Sliding Table Movement | 1000 mm (39") |
| Spindle Diameter | 30 mm (1") |
| Spindle Vertical | Movement 75 mm (3") |
| Spindle Speed | 6000/8000 RPM |
| Total Power | 3-5 HP @ 2800 RPM |
| Approx. Machine Weight | 550 kg |
| SPINDLE MOULDER | MMC-SM- 150 |
|---|---|
| Work Table Size | 1120X 480 /44" X 19" |
| Sliding Table Size | 1120X 280 /44" X 11" |
| Sliding Table Movement | 1000/39" |
| Total Power-hp | 13.5 |
| Spindle Diameter | 30/1 " |
| Up/down Movemet Of Spindle | 75/3" |
| Spindle Speed (RPM) | 6000/8000 |
| Total Power - HP/RPM | 3-5/2800 |
| Approx. weight - kg | 550 |
