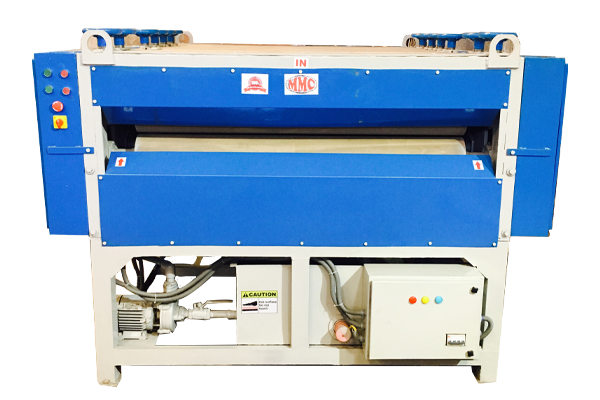

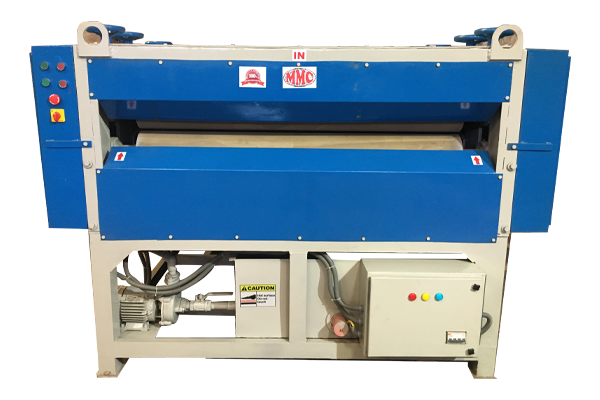

Plywood Dipping Machine
– Automatic Chemical Coating & Treatment Machine
The Plywood Dipping Machine is a high-efficiency industrial machine designed for uniform chemical coating on plywood, flush doors, boards, and other wooden panels. It ensures consistent application of preservatives, resins, and protective chemicals, improving product durability, bonding strength, and surface finish. Built with heavy-duty construction and precision-engineered rollers, this machine is widely used in plywood manufacturing units for reliable, leak-proof, and maintenance-free operation.
| Model | MMC-MOM-12 | MMC-ADM-12 |
|---|---|---|
| No. Of rollers | 12 No | @12 No |
| Roller Dia | 178mm with longlife neosprene rubber coating | 178mm with longlife neosprene rubber coating |
| Structure | Heavy Duty 12mm M.S Plate Body | Heavy Duty Frame M.S |
| Base | Heavy Duty Frame | Heavy Duty Frame |
| Sheet Thickness | 4mm to 45mm | 4mm to 45mm |
| Pump | Branded 1 HP centrifugal pump for lifting chemical from tank to roller | Branded 1 HP centrifugal pump for lifting chemical from tank to roller |
| Roller Dia | 178mm with longlife neosprene rubber coating | 178mm with longlife neosprene rubber coating |
| Chemical Spray Lines | Chemical spray lines along with overhead container | Chemical spray lines along with overhead container |
| Control Panel | Genuine L&T Fittings & Wirings | Genuine L&T Fittings & Wirings |
| Chemical Tank | Heavy Duty S.S304 Grade Sheet (fitted in such a way, there is no chance of leakage of drip from the tank | Heavy Duty S.S304 Grade Sheet (fitted in such a way. there is no chance of leakage or drip from the tank |
| Gearbox | 02 No. of Italian Design | 02 No. Of Italian Design |
| Total Power | 6HP | 7HP |
| Chemical Heating System | S.SElectric Heater Or Oil/Steam Heat Coil (Optional) | S.S Electric Heater Or Oil/Steam Heat Coil (Optional) |
Key Features:
- Uniform chemical coating on both sides of plywood & boards
- Heavy-duty S.S. 304 grade leak-proof chemical tank
- Long-life neoprene rubber-coated rollers
- Separate heavy-duty gearboxes for top & bottom rollers
- Branded centrifugal pump for smooth chemical circulation
- Inbuilt spray lines for even chemical distribution
- Easy to operate and user-friendly design
- Low maintenance & smooth running
Advantages
- Ensures even and consistent chemical application
- Zero chemical leakage or dripping
- Improves plywood strength, durability & bonding quality
- Reduces chemical wastage
- Suitable for continuous industrial operation
- Long service life due to heavy-duty components
Applications
- Plywood chemical coating
- Flush door treatment
- Board & panel impregnation
- Furniture & wood component processing
