Bamboo Chemical Treatment Plant

Bamboo Chemical Treatment Plant

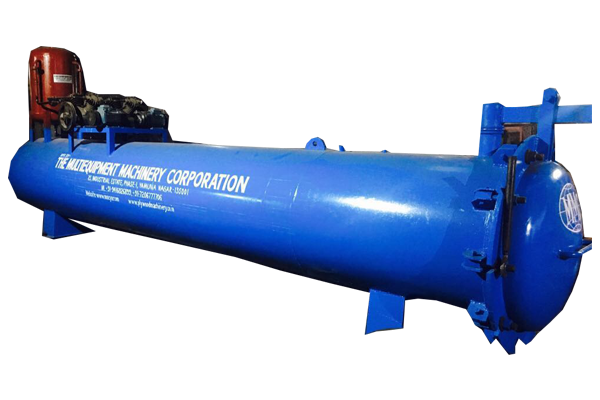

The Wood / Bamboo Chemical Impregnation Treatment Plant is engineered for vacuum–pressure impregnation of timber and bamboo using water-borne preservatives such as CCA, CCB, Boron, Sodium Bicarbonate, and other standard chemical solutions. These systems ensure deep penetration of preservatives, longer service life of wood products, and complete protection from fungal decay, borer attack, moisture damage, and deterioration.

Designed for high-efficiency industrial performance, the plant delivers fully controlled, repeatable, and labour-less treatment cycles, making it ideal for plywood, furniture, handicraft, flush doors, cooling towers, bamboo products, and other value-added timber applications.

Enquiry Now

Key features and advantages

  • High-pressure treatment cycles run smoothly with zero leakage due to our strong, precision-engineered pressure vessel design.
  • Compact layout with the vessel placed above the underground tank allows gravity flow, reducing pump usage and saving space.
  • Supplied in a 2-step installation process — foundation leveling and utility connection — allowing setup within 3–4 hours and easy relocation.
  • All valves, motors, and compressors are mounted on the top for easy operation, monitoring, and maintenance.
  • Features a safe bolt-locking system with a 25mm thick rubber seal and 50.8mm MS locking bolts for a secure, leak-proof door.
  • Low-maintenance plant built with ISO-approved valves, compressors, and flange fittings for long-term reliability.
  • Premium stainless-steel water level sets and gun-metal valves ensure durability and corrosion resistance.
  • Extra heavy-duty bottom ball valves (80mm) included — each costing ₹15,000–₹20,000 — reflecting our quality-first approach.
  • Treatment cycles are fully automated, recording vacuum time, pressure duration, chemical strength, and absorption per CFT.
  • Suitable for vacuum, pressure, and alternate treatment cycles, covering all major wood & bamboo impregnation needs.

Applications

Ideal for industries requiring durable, treated wood:

  • Plywood & Flush Door Processing
  • Handicraft & Furniture Manufacturing
  • Bamboo Treatment Units
  • Cooling Tower Timber Treatment
  • Door & Window Manufacturing
  • General Wood Preservation & Export Units

Why Choose Multi Equipment Machinery Corporation?

  • Over 40 years of expertise (since 1982)
  • Trusted by major plywood & furniture exporters
  • ISO 9001:2015 certified manufacturing
  • In-house foundry for heavy-duty cast iron & metal parts
  • Highly trained installation & service team
  • Strict compliance with FRI (Forest Research Institute) guidelines

Available in capacities from 50 CFT to 650 CFT with single-side bolt locking system. Custom sizes also available.

S.No Model Capacity Plant Size (L x W)
1 MTP-12 50 CFT 12' x 4'
2 MTP-16 100 CFT 16' x 4'
3 MTP-10 150 CFT 10' x 5'
4 MTP-11 200 CFT 12' x 5'
5 MTP-16-5 300 CFT 16' x 5'
6 MTP-18 350 CFT 18' x 5'
7 MTP-22 400 CFT 21' x 5.5'
8 MTP-24 550 CFT 24' x 5'
9 MTP-24-6 650 CFT 24' x 6'
