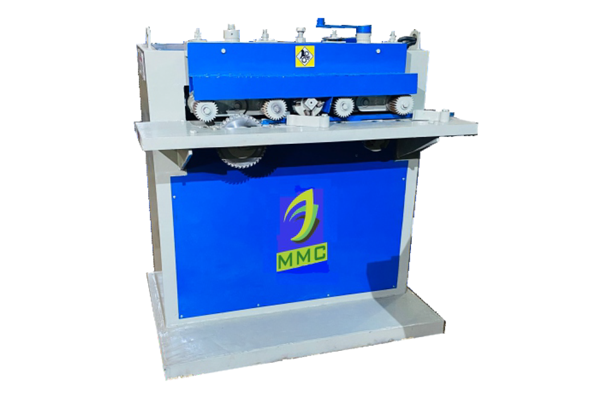

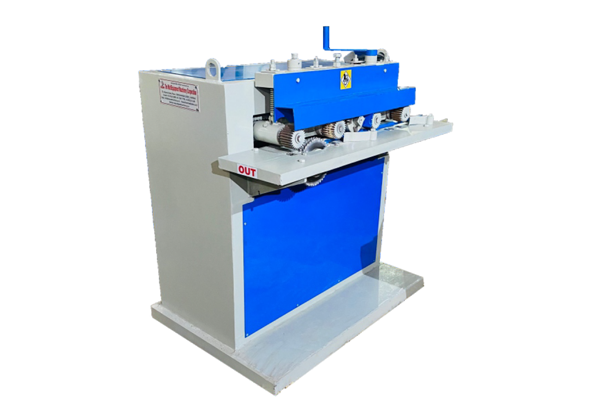

Square Bit Making Machine
– Heavy-Duty Wood Core Squaring Machine
The Square Bit Making Machine is a robust and high-efficiency woodworking machine specially designed to convert round wooden waste rods (leftover after log peeling) into perfectly squared wooden bits. This machine significantly reduces wood wastage and transforms leftover round cores into usable square bits suitable for producing fresh category plywood boards.
Engineered with extra-heavy-duty construction and high-precision cutting technology, the machine delivers uniform sizing, smooth finish, and unmatched output consistency—making it an ideal solution for plywood and veneer industries.
Key Features:
- Converts round wooden rods into perfectly squared bits
- Designed for high-accuracy four-side planning
- Heavy-duty body for continuous industrial operation
- Supports multiple cutter options: HSS, HC & TCT
- In-house manufactured gearbox for superior durability
- High output capacity with consistent dimensional accuracy
- User-friendly operation with minimal maintenance
Advantages
- Reduces wood wastage by reusing round core leftovers
- Enables production of fresh-grade plywood boards
- High production output with uniform quality
- Long machine life due to heavy-duty construction
- Low operational & maintenance costs
- Ideal for plywood mills and veneer processing units
Applications
- Plywood core preparation
- Veneer & panel board manufacturing
- Wood waste utilization
- Furniture & wood component production
Model: MMC-SBM-150
| Specification | Details |
|---|---|
| Minimum Round Rod Thickness | 24 mm |
| Maximum Round Rod Thickness | 40 mm |
| Cutters & Blades | HSS/HC/TCT |
| Total Power | 13.5 HP |
| Gearbox | In-house manufactured |
| Production Output | Approx. 1000 bits |
| Machine Weight | 500 kg (Heavy-Duty) |
| SQUARE BIT MAKING MACHINE | MMC-SM- 150 |
|---|---|
| Minimum Round Rod Thickness | 24 MM |
| Maximum Round Rod Thickness | 40 MM |
| Cutters & Blades | H/S , H/C , TCT |
| Total Power-hp | 13.5 |
| Gear Box | In House Manufactured ( Heavy Duty ) |
| Output - Nos | 1000 Bits Approx. |
| Weight - Kg | 500 |
