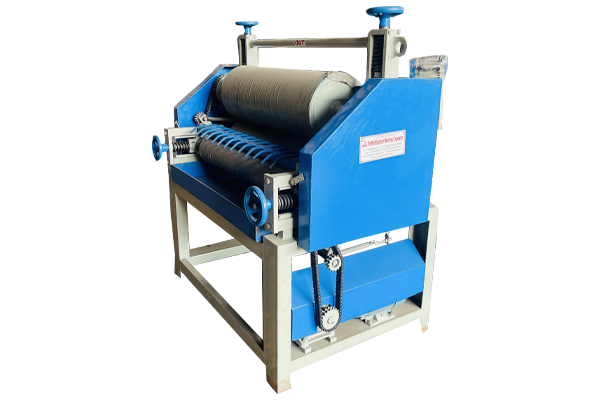

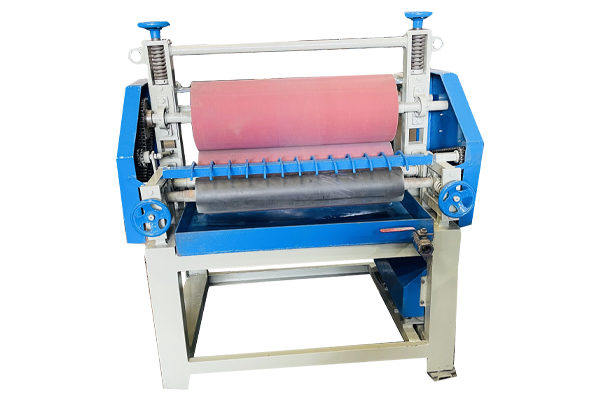

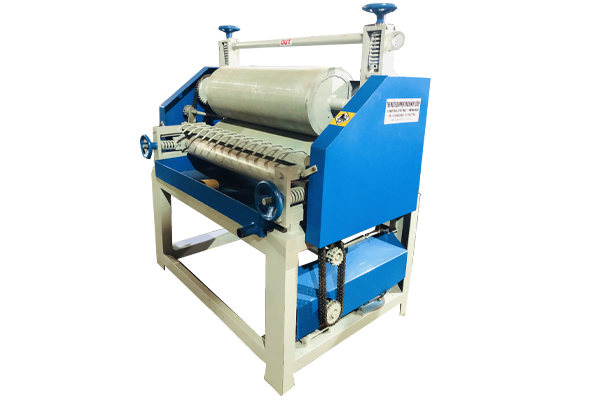

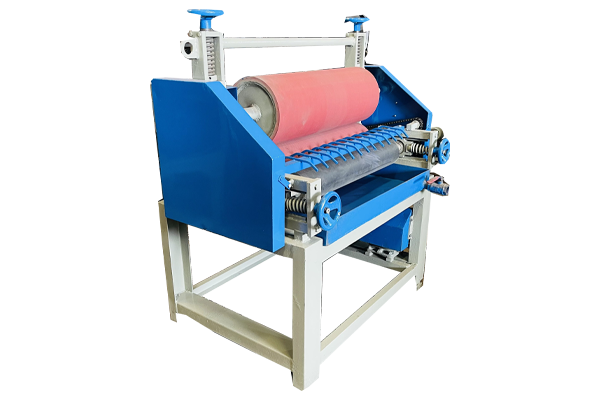

Glue Spreader Machine
The Glue Spreader Machine is engineered to deliver uniform, controlled, and efficient adhesive application across plywood, block boards, flush doors, MDF, particle boards, and other sheet materials.
Built with a heavy-duty frame, Neoprene-coated rubber rollers, and a precision doctor roller system, it ensures smooth, even spreading, strong bonding performance, and reduced glue wastage.
Its robust construction, easy-to-maintain design, and quick roller-change mechanism make it ideal for high-productivity plywood units, laminating plants, and woodworking industries looking for a durable, reliable, and low-maintenance glue application solution.
| TECHNICAL SPECIFICATION | MMC-MGS-36, 54 |
|---|---|
| Available Sizes | 36,54 |
| Rubber Roller Length | 915. 1372 (MM |
| Driving Electric Motor | 3HP |
| Main Rollers Before Rubber Coating | 255MM (Fresh heavy duty pipe with 9mm thickness & double ploted on each end of the pipe from the inside. |
| Doctor Rollers | Ebonite/Chrome optional (price) |
| Frame Structure | Heavy Duty Frame Structure |
| Mechanism | Heavy duty duplex chain system for zero chances of error |
Key Features:
- Heavy-Duty Structure: Stable steel frame for continuous, vibration-free operation.
- Neoprene Rubber Rollers: Long-life, wear-resistant rollers ensure smooth and even glue application.
- Doctor Rollers (Ebonite/Chrome): Precisely control glue thickness for consistent spread quality.
- Quick Roller Change System: Saves time and increases production efficiency.
- Duplex Chain Drive: Ensures synchronized motion and uniform coating.
- SS-304 Glue Storage Tank: Hygienic, rust-proof top glue tank with 2-way flow valves.
- High-Performance Motor: Available in 3 HP and 5 HP options for different production capacities.
- Low Maintenance: Engineered for long service life with minimal wear and easy cleaning.
Advantages
- Uniform adhesive coating for stronger bonding
- Reduced glue consumption and wastage
- Faster production with quick roller change
- Durable build for long-term industrial use
- Easy to operate and maintain
