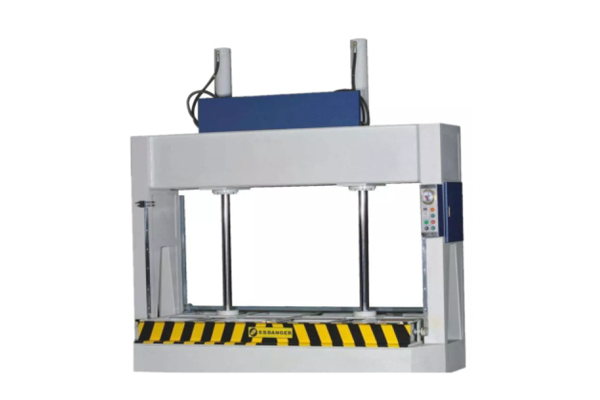

Cold Press Machine
Heavy-Duty Lamination & Pressing Solution

The Cold Press Machine is designed for high-precision pressing and laminating of plywood, MDF, particle board, HDF, flush doors, and laminated sheets. With a robust hydraulic structure, high pressure uniformity, and fast pressing cycles, it ensures superior bonding quality and increased productivity—making it ideal for plywood and furniture manufacturing.

Enquiry Now

Key Features

  • Suitable for laminating plywood, MDF, HDF, particle board & more
  • Ensures strong bonding and uniform pressure distribution
  • Manual & semi-automatic control options
  • Heavy-duty construction for long operational life
  • Emergency stop & motor overload protection
  • High efficiency with consistent pressing results

Applications

  • Plywood lamination
  • MDF & particle board pressing
  • Decorative laminate pressing
  • Veneer bonding
  • Flush door manufacturing

Technical Specifications

Specification MMC-CP-50 MMC-CP-100
Maximum Load on Work Table 50 Ton 100 Ton
Platen Size 2500 × 1250 mm 2500 × 1250 mm
Maximum Platen Opening 1000 mm 1000 mm
No. of Hydraulic Cylinders 2 4
Bore Size of Hydraulic Cylinders 125 mm 125 mm
Installed Power 5 HP 5 HP
Machine Dimensions (L × B × H) 3000 × 1270 × 2300 mm 3000 × 1270 × 2300 mm
